CAN Physical Layer - 2




ISO11898-2 OVERVIEW

ISO11898 is the international standard for high-speed CAN communications in road vehicles. ISO-11898-2 specifies the PMA and MDA sublayers of the Physical Layer. See Figure 2 for a representation of a common CAN node/bus as described by ISO-11898.

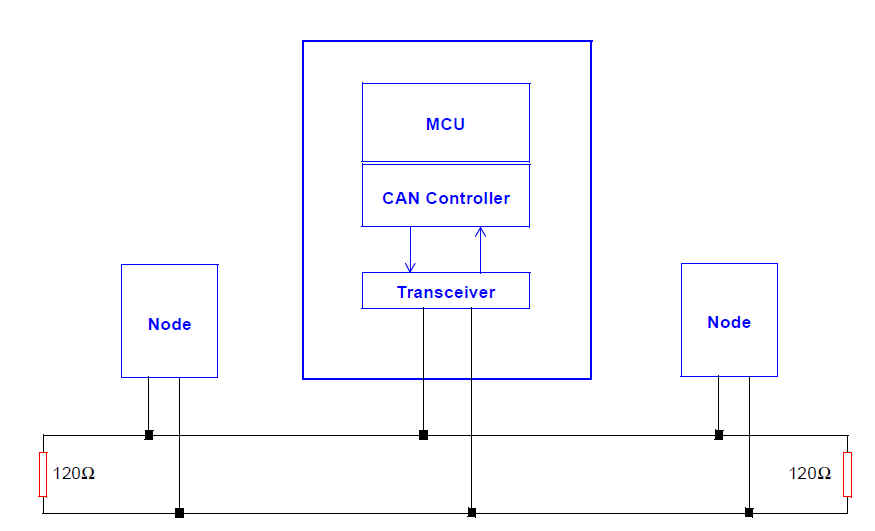

FIGURE 2: CAN BUS ARCHITECTURE
